SMART PUMP™ Specifications
Built for Wildfire Operations
Two Type 2 configurations. The same proven water-delivery platform.
Choose the standard SMART PUMP™ or add the remote command, connectivity, monitoring, and automation capabilities of the Next Generation system.
Type 2 Platform
1,700 GAL - Water Capacity
11’ 3” - Length
8’ 6” - Width
4’ 4” - Height - excluding adjustable legs

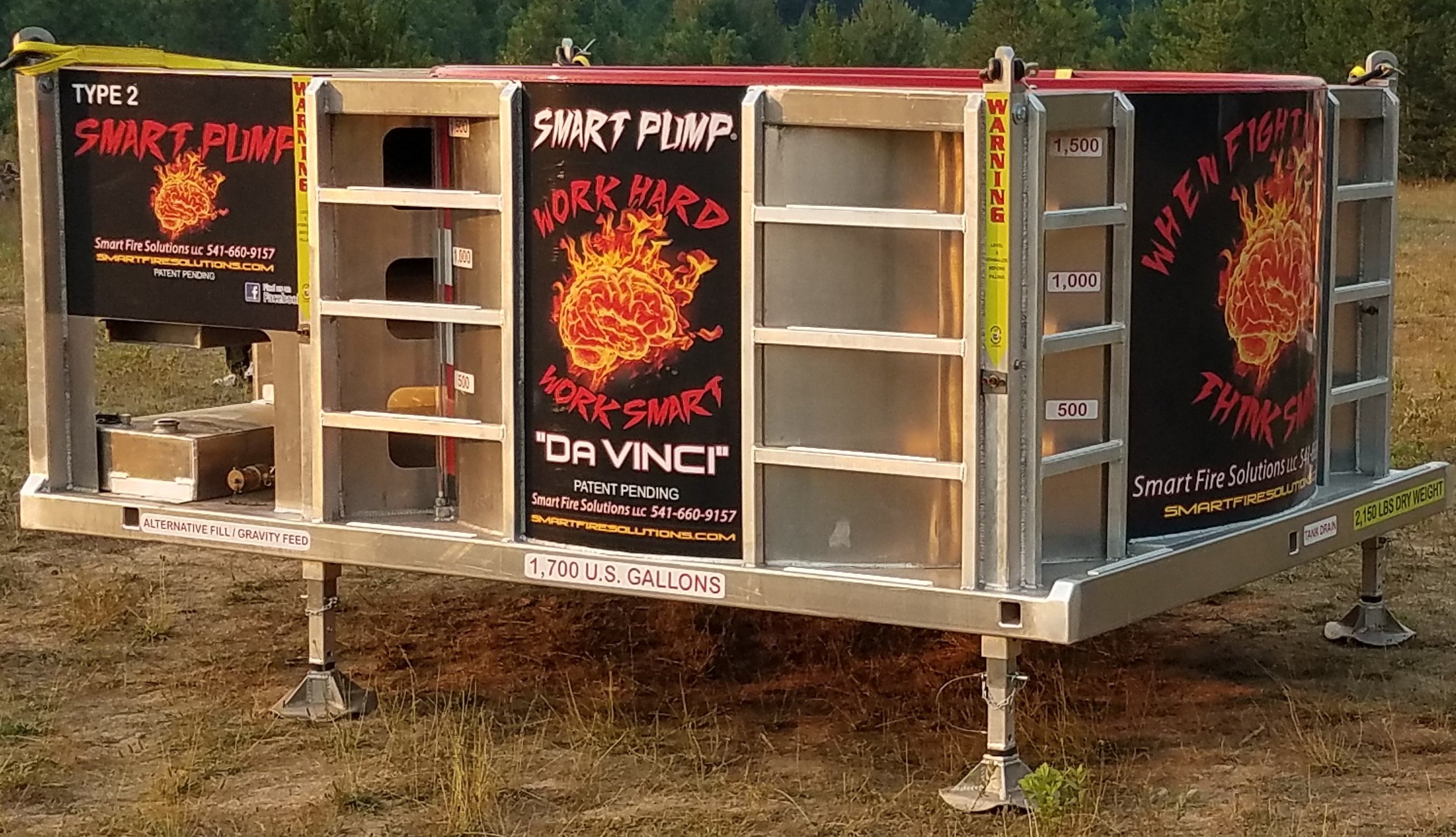

TYPE 2 SMART PUMP™
Dry Weight: 2,150 lbs
Pump: BB-4 High-Pressure Fire Pump
Engine: 25 HP Honda
Fuel Capacity: 16 gallons
Foam/Gel: Foam and gel application capability
Helicopter: Transportable by Type 2 and larger helicopters

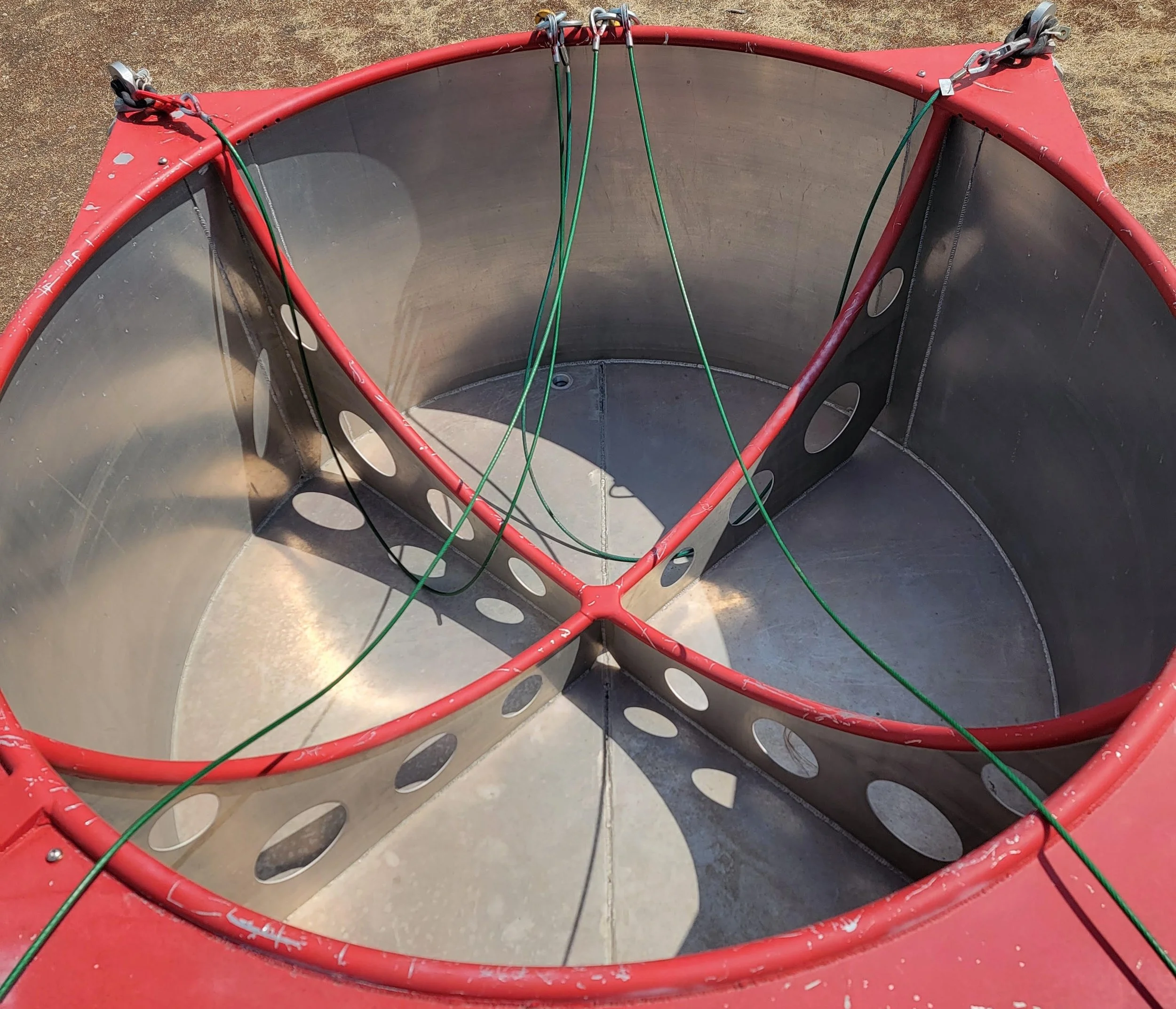

Tank: Splash-out baffles for helicopter bucket filling
Leveling: Independently adjustable leveling legs
Splash-out baffles
NEXT GENERATION TYPE 2 SMART PUMP™
Dry Weight: 2,250 lbs
Includes the same fundamental Type 2 pumping and water-delivery capability, PLUS:
Starlink: Standard equipment
Remote Operation: Remote start/stop and system monitoring
Cameras: 4 permanently mounted live cameras
Optional Camera: Deployable fifth camera with up to 150-ft cable
Telemetry: Real-time system monitoring
Automatic Water Management: HELI-WELL™
Scene Lighting: Integrated
Remote Safety: Audible warning horn before remote engine start
